SBR Linear motion ball slide guide
Model: SBR

SBR Linear motion ball slide guide

Low coefficient of friction, reliable friction characteristics that do not increase over the time of the bearing use. Built in double standard seals made from Polymer Resin cage for quieter operation by high speed motion.

Products with good accuracy, safe and reliable.
Smooth moving,high rigidity, long life, economical and easy to maintain and replace

Usage:
Semiconductor manufacturing equipment, CNC and NC machines, printed circuit board IC assembly equipment, robotic arm, precision measurement equipment, office automation equipment, and other large-scale linear slide devices.
Contact Us Download PDF
PREV：No previous article
NEXT：SBR-UU&SBR-LUU SBR Linear motion ball slide units
  • Main Parameter

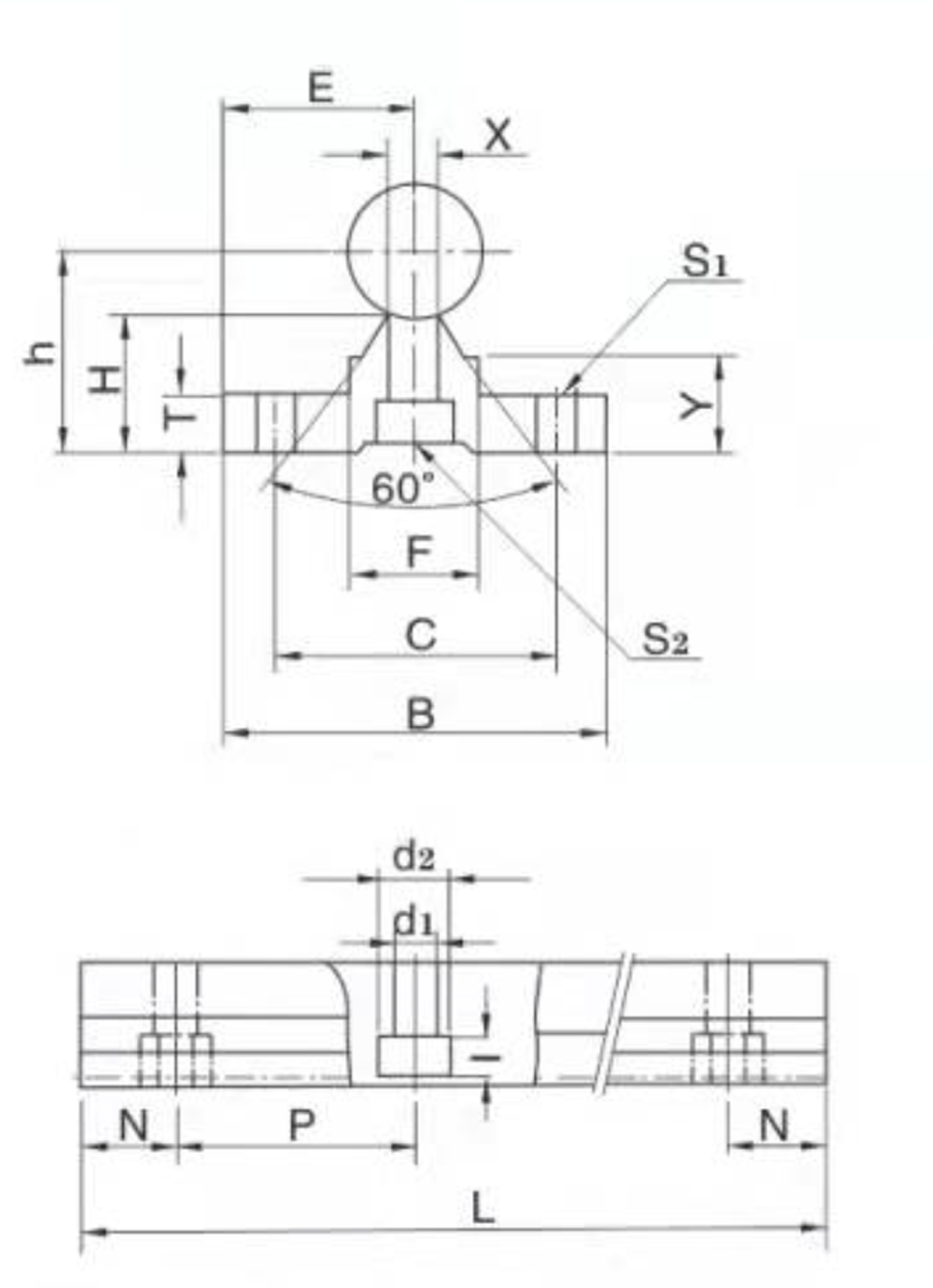

  • Design Diagram
  • Support
    Designation    		 Shaft designations Dimensions
    (mm)    		 Weight
    (kg/m)
    E h B H T F X Y C S1 S2
    d1*d2*i
    SBR 10 ∅10 16 21 30 13 4 12.5 4.7 8.5 21 ∅4.5 5*9*5 1.5
    SBR 12 ∅12 16 22 30 13 4 12.5 4.7 8.5 21 ∅4.5 5*9*5 1.7
    SBR 13 ∅13 16 23 30 13 4 12.5 4.7 8.5 21 ∅4.5 5*9*5 1.8
    SBR 16 ∅16 20 25 40 17.8 5 18.5 8 11.7 30 ∅5.5 5.5*9.5*5.4 1.00
    SBR 20 ∅20 22.5 27 45 17.7 5 19 8 10 30 ∅5.5 5.5*9.5*5.4 1.07
    SBR 25 ∅25 27.5 33 55 21 6 21.5 8 12 35 ∅6.6 6.6*11*6.5 1.50
    SBR 30 ∅30 30 37 60 22.8 7 26.5 10.3 13 40 ∅6.6 6.6*11*6.5 1.90
    SBR 35 ∅35 32.5 43 65 26.5 8 28 13 15.5 45 ∅9 9*14*8.6 2.45
    SBR 40 ∅40 37.5 48 75 29.5 9 38 15.5 17 55 ∅9 9*14*8.6 3.25
    SBR 50 ∅50 47.5 62 95 38.8 11 45 20 21 70 ∅11 11*17.5*10.8 5.26


    Support Rail Stand Lengths and Dimensions

    Designation SBR10 SBR102 SBR13 SBR16 SBR20 SBR25 SBR30 SBR35 SBR40 SBR50
    Standard length L 140 140 140 190 340 250 450 460 460
    660
    860
    10600
    1260    		 470
    670
    870
    1070
    1270
    240 240 240 340 640 450 850 660
    340 340 34 640 940 850 1250 860
    440 440 440 940 1240 1250 1450 1060
    N 20 20 20 20 20 25 25 30 30 350
    P 100 100 100 150 150 200 200 200 200 200
    Max.Length 5000 5000 5000 6000 6000 6000 6000 6000 6000 6000
